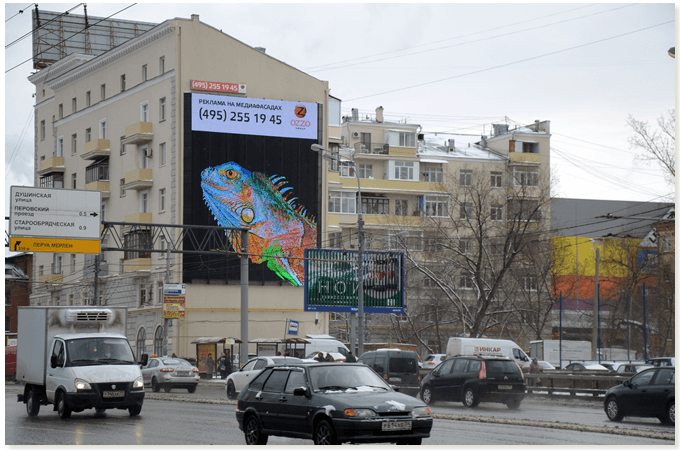

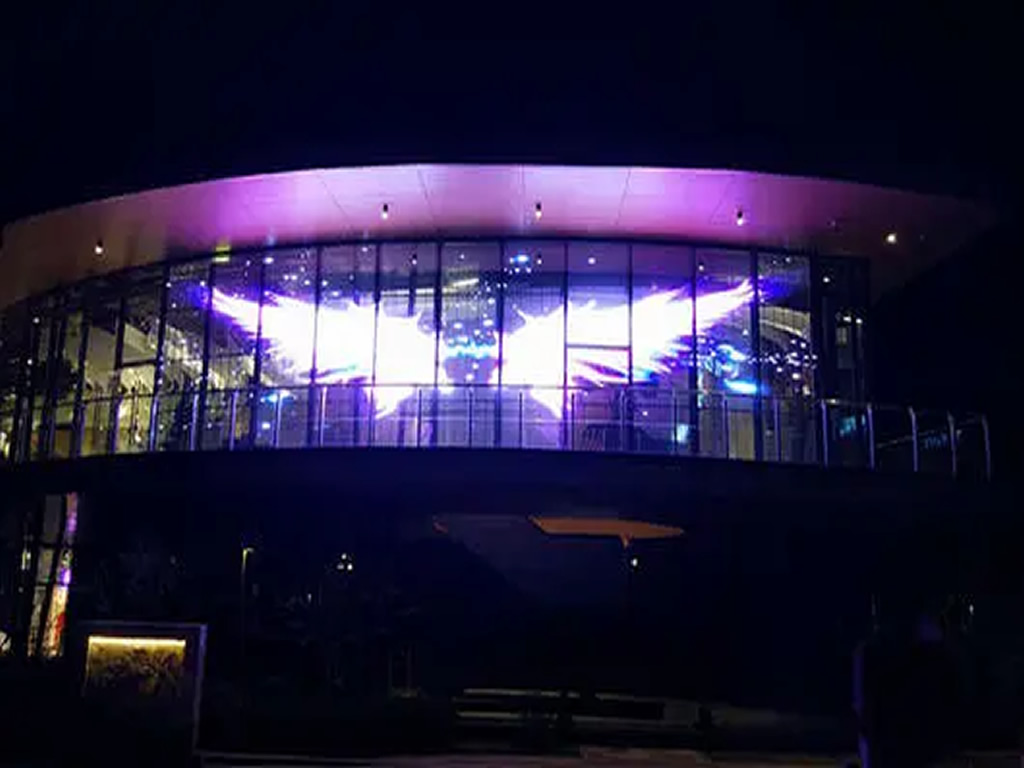

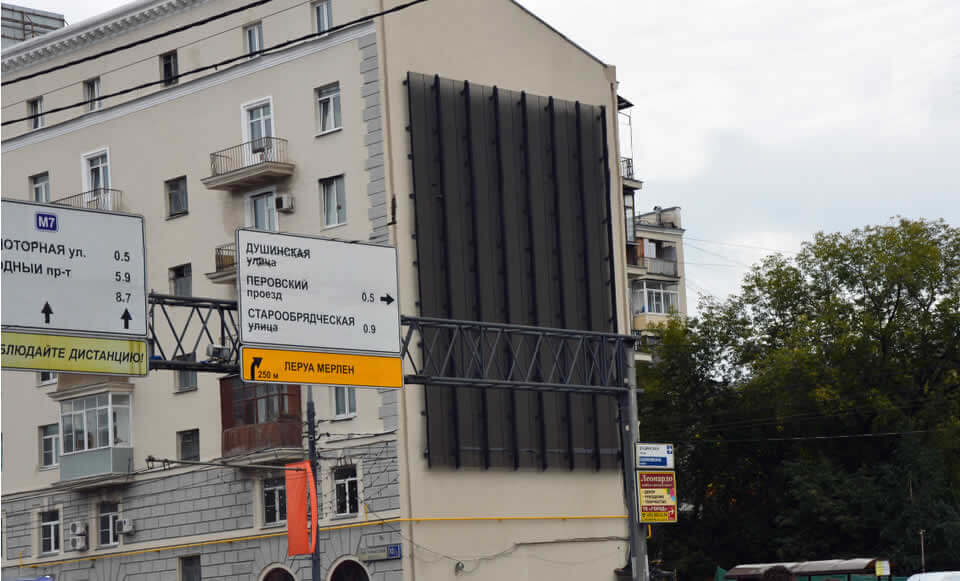

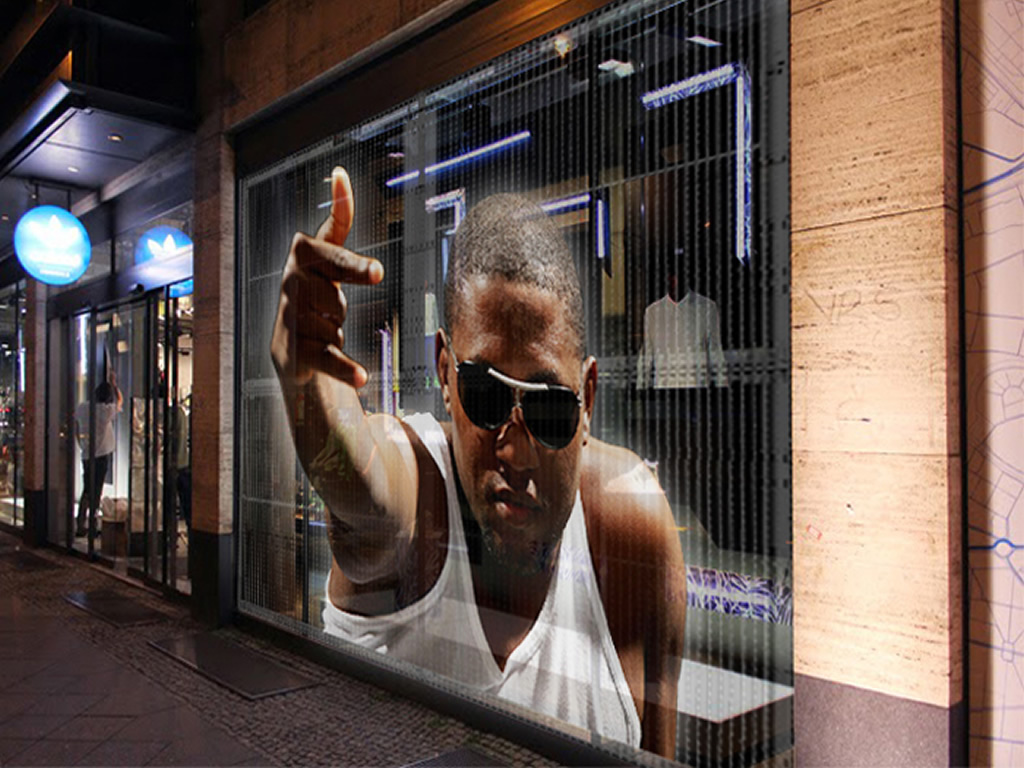

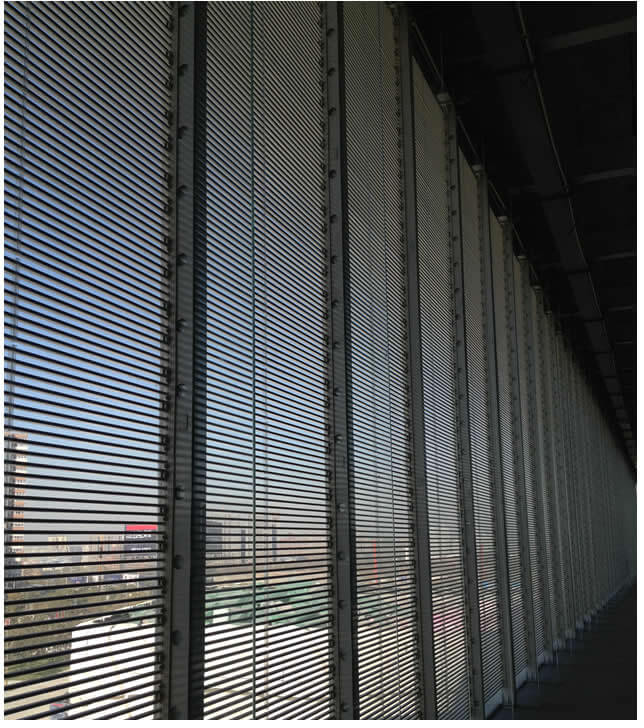

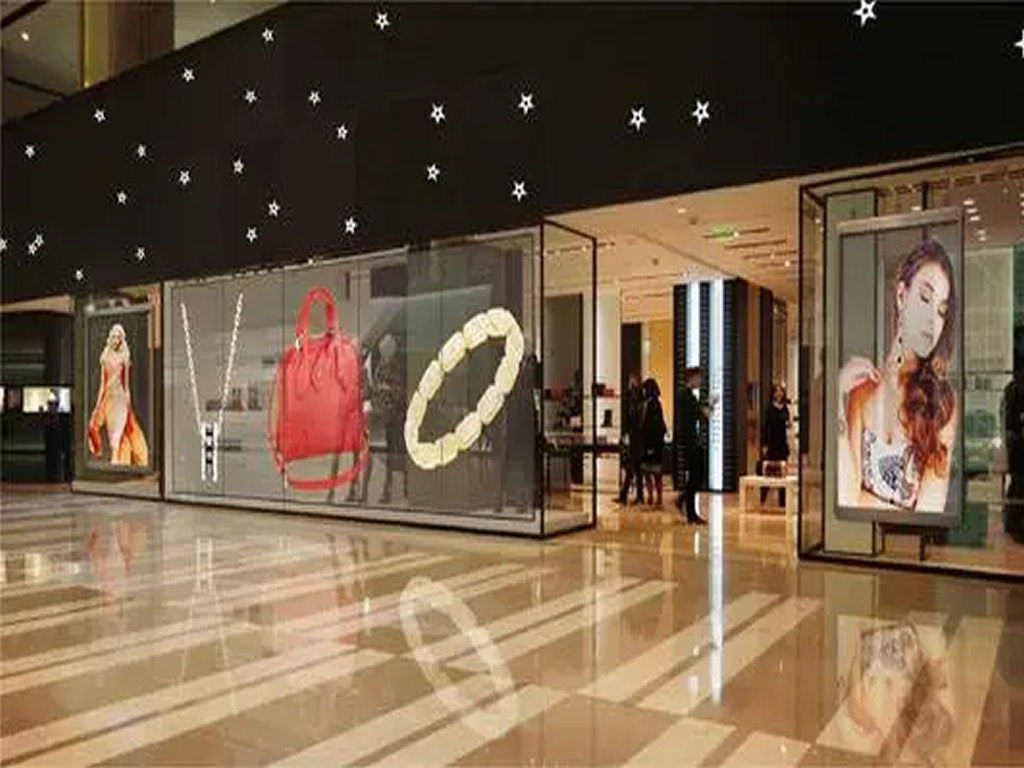

LED curtain screen has the characteristics of the strip, hollow, penetrating light, not affecting ventilation and lighting, etc. It is usually used for building exterior walls and landmark buildings. It is suitable for building a super-large outdoor display screen and is the first choice for creating a landmark dynamic display landscape.
| Model | Omesh12 | Omesh15 | Omesh20 | Omesh25 | Omesh31.25 |
| LED type | DIP | DIP | DIP | DIP | DIP |
| Pixel Pitch (mm) | 25/12.5 | 31.25/15.625 | 20/20 | 25/25 | 31.25/31.25 |
| Pixel Density (Pixels/m²) | 3200 | 2048 | 2500 | 1600 | 1024 |
| Transparency rate (%) | 48 | 59 | 35 | 48 | 59 |
| Brightness (nits) | 10000 | 10000 | 10000 | 10000 | 10000 |
| Weight(kg/m2) | 14 | 12 | 17.5 | 15 | 12 |
| Panel size(WxH)/ (mm) | 1500x500 | ||||
| Viewing Angle (°)(H/V) | 120/60 | ||||
| Color Grayscale (Bit) | 14-16bit | ||||
| Refresh Rate (Hz) | 3840 | ||||
| IP Rating (Front/Rear) | IP66 | ||||
| Brightness control | 100 levels | ||||
| AC Input Voltage (V) | AC:180-264V±10% | ||||
| Module Installation Method | Front Access | ||||
| Drive mode | Current static driver | ||||
| Storage Temperature (℃) | ‐40～60 | ||||
| Working Temperature (℃) | ‐20～50 | ||||
| Storage Humidity (RH) | 10%~90% non‐condensing | ||||
| Working Humidity (RH) | 10%~80% non‐condensing | ||||
| Lifetime Typical Value (hrs) | 100000 | ||||
| Cabinet Installation Type | Fixed installation | ||||
