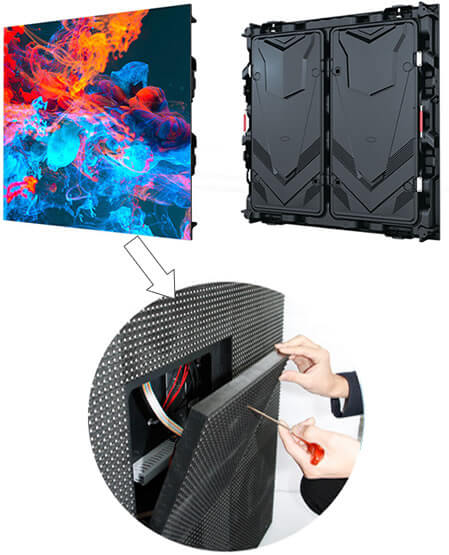

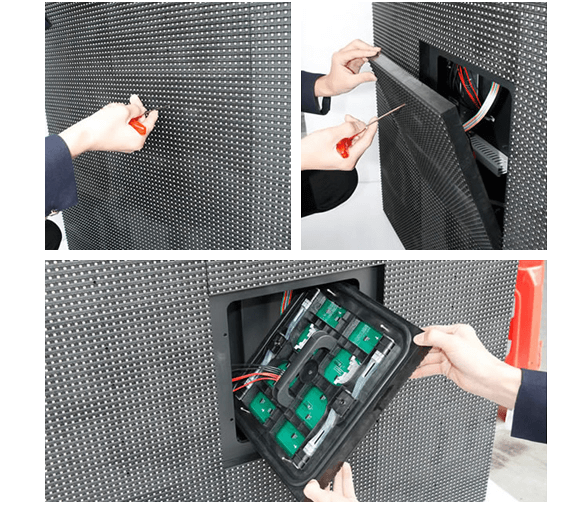

In installations where the LED display is placed on a wall or facade, there is no more space for rear maintenance applications. LED display must with front maintenance design, Once located, it's possible to access the interior parts of the LED screen.
| Pixel Pitch | 4 mm | 5.33mm | 6.67mm | 8 mm | 10 mm |
| LED Type | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Density | 62,500 | 35,200 | 22,477 | 15,625 | 10,000 |
| Driving Type | 1/10 | 1/10 | 1/6 | 1/5 | 1/2 |
| Brightness (nits) | >5500 | >5500 | >5500 | >5500 | >6500 |
| Viewing Angle (°)(H/V) | 140/120 | ||||
| Module Size(WxH)/ (mm) | 320X320 | ||||
| Cabinet Size (WxH)/ (mm) | 960X960 | ||||
| Color Grayscale (Bit) | 14-16bit | ||||
| Refresh Rate (Hz) | 960~3840 | ||||
| IP Rating (Front/Rear) | IP65/IP54 | ||||
| Contrast Ratio | 3500:1 | ||||
| AC Input Voltage (V) | AC:90-240V±10% | ||||
| Module Installation Method | Front Access | ||||
| Panel Material | Aluminum/Iron | ||||
| Storage Temperature (℃) | ‐40～60 | ||||
| Working Temperature (℃) | ‐20～50 | ||||
| Storage Humidity (RH) | 10%~90% non‐condensing | ||||
| Working Humidity (RH) | 10%~80% non‐condensing | ||||
| Lifetime Typical Value (hrs) | 100000 | ||||
| Cabinet Installation Type | Fixed installation | ||||
